Overview

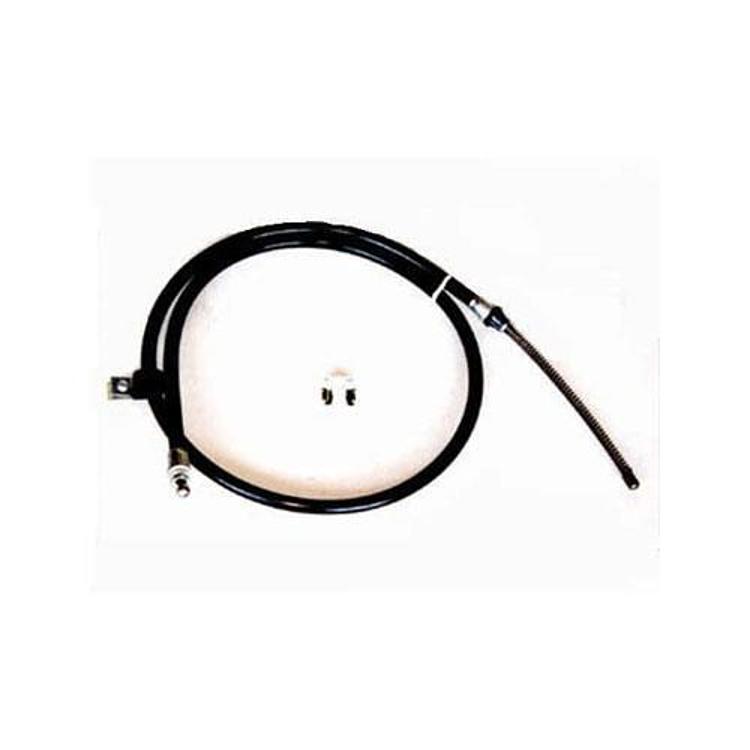

The Crown Automotive J3239949 is a passenger side rear emergency brake cable for the 1981–1983 Jeep CJ5, the 1981–1986 CJ7 and the 1981–1985 Scrambler. The cable measures 61-1/4 inches long and applies the right rear brake when the parking brake is set.
The position is rear right, so this cable serves one side of the vehicle.
Key features
- Rear right emergency brake cable
- Length of 61-1/4 inches
- Direct fit for late CJ5, CJ7 and Scrambler models
- Replacement part from Crown Automotive
Routing and adjustment
A parking brake cable carries the force from the hand lever or pedal to the rear brake mechanism, so it has to run cleanly through its guides and stay under even tension. Cables stretch slightly over time, and a new one usually needs adjusting after installation so both rear wheels engage at similar lever travel. The cable sheath, ends and guides should all be checked at the same time.
On the rear right cable, look for fraying, kinks, corrosion at the end fittings and a sheath that has split or dried out. A cable that binds at a guide can release poorly or hold the brake partly applied, which affects the wheel on that side. When replacing one side, inspect the opposite cable as well, since both are exposed to the same road conditions.
- Route the new cable through the same guides as the old one
- Adjust the cable so both rear brakes engage evenly
- Test the parking brake on a slope before driving
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J3239949 |
| UPC | 848399061093 |
| Part type | Emergency brake cable |
| Position | Rear right, passenger side |
| Cable length | 61-1/4 inches |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1981–1983 Jeep CJ5, the 1981–1986 CJ7 and the 1981–1985 Scrambler.
CJ5 and CJ7 years before 1981 are not covered by this cable. The driver side cable uses a different part number. Confirm your vehicle’s year, model and trim before ordering.
