Overview

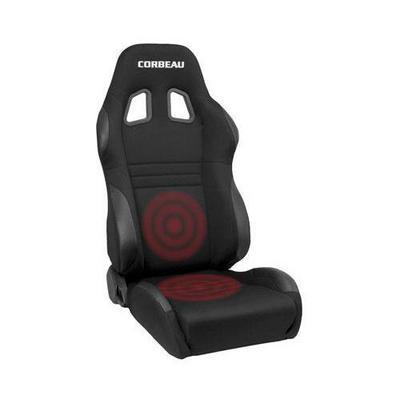

The Corbeau Seat Heater, part number CBU12501, is a universal fit carbon fiber seat heating unit for front seats. It can be installed in Corbeau seats or in factory seats, and its heating pads can be trimmed to size for a proper fit.
This universal seat heating system is offered as a high quality heater at an affordable cost. The heater warms up within two minutes. Its patented heat flow system directs warmth upward toward the body rather than into the seat, so the body warms faster than with many seat heaters.
Key features
- Carbon fiber heating pads, which Corbeau describes as one of the finest heating pad materials available
- Patented heat flow system that directs heat upward toward the body
- Heats up within two minutes
- Heating pads can be trimmed to size to fit the seat
- Can be installed in Corbeau seats or factory seats
- Two-wire connection: a positive wire and a ground wire to the factory electrical system
Heater wiring and trimming
A seat heater works by warming pads placed under the seat cover, so the pad layout and cover thickness both affect how quickly the seat warms. Thick or padded covers slow the heat, while a thin, well-fitted cover lets it reach the body more directly. When trimming pads, keep the heating element intact and avoid folding or creasing it, since damage can cause uneven heating.
Wiring is the part that most often causes trouble. Route the two leads away from moving seat parts, secure them with clips, and keep connections dry. Use a fuse on the power feed if the installation calls for one. Check the heater after the first few uses for uneven warmth, a flickering indicator or a warm smell, since any of these signs means the wiring or pads need inspection.
- Route leads clear of seat rails
- Keep connections dry and sealed
- Test the heater before reassembling trim
Specifications
| Brand | Corbeau |
|---|---|
| Part number | CBU12501 |
| Color | White |
| Seat position | Front |
| Fitment | Universal fit |
| Waterproof | Not waterproof |
| Material | Carbon fiber |
| Wiring | Two wires: positive and ground |
Vehicle fitment
The heater is universal fit and is not tied to a particular make, model or year. The heating pads can be trimmed, so the pad layout must match your specific seat before installation, whether it is a Corbeau seat or a factory seat.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Professional installation is recommended, although the wiring is fairly simple. Two wires, a positive and a ground, connect the heater to the factory electrical system. Check the pad fit against your seat before trimming. The heater is not waterproof, so keep it dry and away from spills. Disconnect the battery before working on the wiring.
What’s included
Confirm what arrives in the box before installing the heater.
