Overview

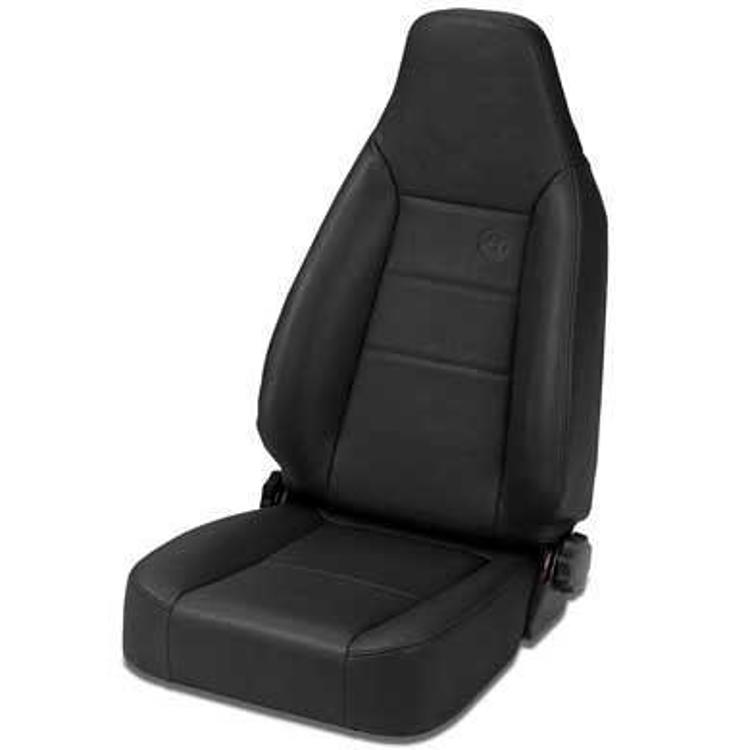

The Bestop 39434-01 is a black vinyl TrailMax II Sport reclining front seat with a built-in headrest, meant for Jeep Wrangler owners who want a replacement or upgrade seat. Separate seat adapter brackets are needed for 1997-2002 and 2003-2006 Wrangler applications, so confirm your year before installing.
It is part of Bestop’s TrailMax II range. The black vinyl is mildew resistant, and the Atlas frame resists corrosion. High density closed cell foam under the upholstery helps reduce fatigue and keep the seat shape over time.
Key features
- Rotary recliner dial that mounts on either side, so the seat can be set up for a driver or passenger position
- Built-in headrest
- Elastic mesh map pocket on the back of the seat
- Variable Rate of Resistance springs, meant to balance comfort on the road with support on the trail
- High density closed cell foam cushioning
- Black vinyl that is mildew resistant and offered in factory original colors
Setting up the recliner
A rotary recliner mechanism needs regular checks because it carries the seat back under load. Over time, the dial may slip, the lock may stop engaging, or the seat back may drift when reclined. Keep the recliner dial and its lock free of dirt, and avoid leaning hard on a seat that is not fully latched. Springs that tire can also make the seat feel soft, so watch for sagging over time.
Before installing, decide which side the dial should sit on, since it mounts on either side. Once mounted, test the recline in each position and confirm the seat locks fully upright. Recliners that stay loose under load should be checked before anyone rides in the seat again.
- Test the recline lock in every position
- Keep the dial area clear of debris
Specifications
| Brand | Bestop |
|---|---|
| Product line | TrailMax II Sport |
| Part number | 39434-01 |
| UPC | 77848028022 |
| Seat type | Reclining |
| Seat location | Front |
| Upholstery | Black vinyl |
| Frame | Atlas frame |
| Color | Black |
| Adapter bracket, 1997–2002 applications | 51256-01, one for each seat |
| Adapter brackets, 2003–2006 applications | 51245-01 (driver side) and 51248-01 (passenger side) |
| Fitment attribute | Direct Fit |
Vehicle fitment
It is used on 1997-2002 Wrangler applications with adapter bracket 51256-01 for each seat, and on 2003-2006 Wrangler applications with brackets 51245-01 and 51248-01.
Check mounting details against your vehicle’s seat mounts before tightening anything. Verify your vehicle’s year, model and trim before ordering.
Installation notes
Model year decides which brackets are needed. Both bracket sets are required for their year ranges, so have them on hand before starting. The recliner dial can be placed on either side of the seat; choose the side that suits your seat position before final assembly. Keep the seat fully secured before anyone rides in it.
What’s included
The seat with its rotary recliner dial and built-in headrest.
Not included: seat adapter bracket 51256-01 for 1997–2002 applications, and brackets 51245-01 and 51248-01 for 2003–2006 applications.
