Overview
The Banks Power 45001 is a Straight-Shot water-methanol injection system, a high-volume kit with a digital controller, nozzles and pump for select Ford, GMC and Ram trucks. Tanks are sold separately. Its part number is 45001 and its UPC is 801279450011.
The control interface is a 2-1/16 inch gauge head unit that lets you command 2 stages of injection for tuning. It doubles as a multi-function gauge, showing boost or TPS %, EGT (optional, when equipped) and pump duty cycle on its digital display, while an on-board LED indicates system activity and errors.
Key features
- High-volume Straight-Shot water-methanol injection system
- Digital controller housed in a 2-1/16 inch gauge head unit
- Command of 2 stages of injection for tunability
- Multi-function display: boost or TPS %, EGT (optional), pump duty cycle
- On-board LED for system activity and error indication
- Universal models with a high-precision on-board 100 PSIA pressure sensor for boost sensing
- Plug-and-play models that connect to the factory MAP sensor
- Nozzles and pump included
Choosing a water-methanol setup
Water-methanol injection sprays a fluid mixture into the intake to cool incoming air. Cooler charge air is less prone to knock under load, which is why these kits are common on trucks that tow or carry heavy loads. The fluid comes from a separate tank, so the tank, lines and filter need to be set up correctly alongside the controller and nozzles.
Think about how the system will be controlled before buying. Stepped injection gives room to adjust output, but the controller is only as good as the boost or throttle signal it reads. Plug-and-play versions rely on the factory MAP sensor, while universal versions read their own pressure sensor, so the sensing setup matters as much as the nozzles.
- Tank size and mounting location
- Fluid filter and line routing
- Fluid type and cold-weather storage
- Wiring for the chosen sensor version
Specifications
| Brand | Banks Power |
|---|---|
| Part number | 45001 |
| UPC | 801279450011 |
| Injection type | Water-methanol, Straight-Shot high-volume system |
| Injection stages | 2 stages, commanded from the control head |
| Control head | 2-1/16 inch gauge head unit with digital display and on-board LED |
| Display readouts | Boost or TPS %, EGT (optional, when equipped), pump duty cycle |
| Boost sensing | Universal models: high-precision on-board 100 PSIA pressure sensor; plug-and-play models: factory MAP sensor |
| Included | Digital controller, nozzles, pump |
| Tanks | Sold separately |
Vehicle fitment
Banks Power marks the 45001 Universal Fit, but the manufacturer fitment list names the following vehicles and trims:
- 2000–2003 Ford Excursion (Eddie Bauer, Limited, XLT)
- 1994–1996 Ford F-250 (Eddie Bauer, Special, XL, XLT)
- 1997 Ford F-250 HD (XL, XLT)
- 1999–2003, 2011–2016 Ford F-250 Super Duty (King Ranch, Lariat, Platinum, XL, XLT)
- 1994–1997 Ford F-350 (Base, Eddie Bauer, Special, XL, XLT)
- 1999–2003, 2011–2016 Ford F-350 Super Duty (King Ranch, Lariat, Platinum, XL, XLT)
- 2015–2016 GMC Sierra 2500 HD (Base, Denali, SLE, SLT)
- 2015–2016 GMC Sierra 3500 HD (Base, Denali, SLE, SLT)
- 2015–2016 Ram 2500 (Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, Outdoorsman, SLT, Tradesman)
- 2015–2016 Ram 3500 (Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Lone Star, SLT, Tradesman)
Model years outside these ranges, such as 2004–2010 Ford Super Duty, are not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Universal models use the on-board 100 PSIA sensor for boost sensing, while plug-and-play models connect to the factory MAP sensor, so confirm which version matches your truck before wiring the system.
What’s included

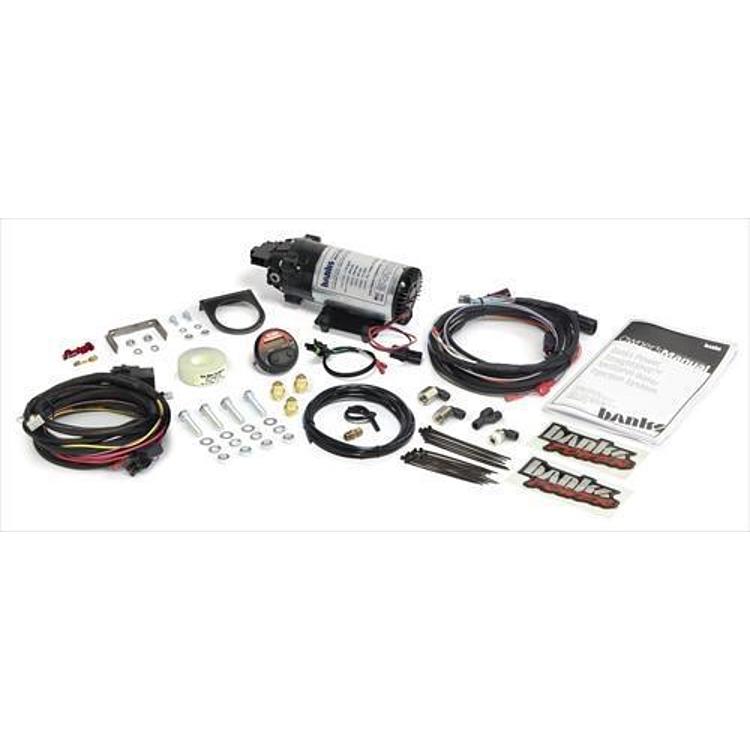

The kit includes the digital controller, nozzles and pump.
Not included: Water-methanol tanks, which are sold separately.
