Banks Power Banks Billet Torque Converter – 72515

Banks Power

Shop Banks Power Torque Converter on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Banks Power billet torque converter, part number 72515, for automatic transmissions in trucks modified for more performance
  • Rated at 1800 lb-ft of torque capacity, versus 600 lb-ft for stock

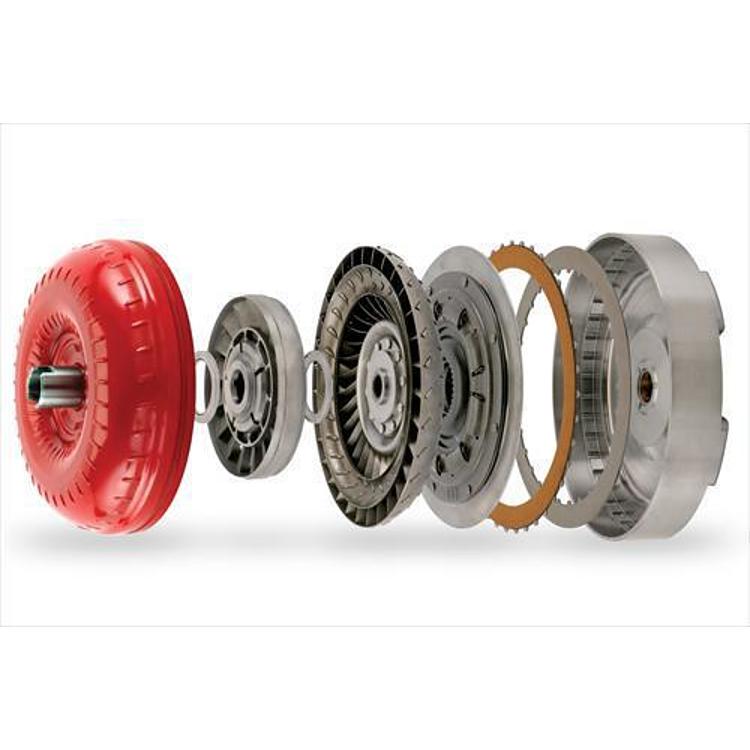

  • Three-friction-element clutch system with billet steel cover
  • Balanced and blueprinted assembly
  • Tagged Universal Fit; confirm transmission match before installation

Description

Overview

The Banks Power Billet Torque Converter, part number 72515, is a torque converter for automatic transmissions in trucks built for more performance. Banks says its three-friction-element clutch system and billet steel cover hold solid contact without flexing, which lets the converter carry up to 1800 lb-ft of torque, three times the 600 lb-ft of the stock unit.

The lockup clutch resists slip, which helps keep transmission fluid cooler and supports transmission life. The assembly is balanced and blueprinted, and the torque band is matched so power reaches the wheels. The converter is designed for racing use and delivers nearly one second off the 0-60 mph acceleration time.

Key features

  • Three-friction-element clutch system for solid lockup
  • Billet steel cover designed to hold contact without flexing
  • Slip-resistant lockup clutch that Banks says keeps fluid cooler
  • Balanced and blueprinted assembly
  • Torque band matched to deliver power to the wheels

Matching the converter to the transmission

A torque converter links the engine to the automatic transmission through fluid, multiplying torque when the vehicle pulls away and locking up at cruising speed to reduce slip. Because the converter sits between the engine and the gearbox, its bolt pattern, hub and input shaft must match the transmission exactly. Check the converter’s fit against the transmission before assembly, since a mismatch can cause leaks, vibration or damage.

A stronger converter puts more load through the transmission, so inspect the cooler, lines and fluid before installation. Old fluid carrying fine metal or a burnt smell suggests internal wear that should be found before a new converter goes in. Replace the filter and fluid when the converter is changed, and inspect the flex plate or drive plate for cracks while the transmission is out.

Specifications

Brand Banks Power
Part number 72515
UPC 801279725157
Torque capacity 1800 lb-ft (stock 600 lb-ft)
Cover material Billet steel
Clutch system Three-friction-element
Fitment tag Universal Fit

Vehicle fitment

Banks tags this converter as Universal Fit, so it is not built around a single vehicle. No year, make, model or trim is listed. A torque converter has to match the transmission and engine, so check with Banks before installation.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Replacing a torque converter is transmission-level work, so plan for the transmission to be opened or removed. Check the converter’s fit against the transmission before assembly. Disconnect the battery before working near the drivetrain.

What’s included

The torque converter is the item offered; no additional hardware is specified.

SKU: GBE72515 Category:

Specification

Shipping weight 64.70 lbs
Package dimensions 14.40 × 14.20 × 11.80 in
brands

Questions & Answers

Will the Banks 72515 torque converter fit my truck?

The manufacturer tags it Universal Fit, but no specific years, makes or models are listed. Because a torque converter has to match the transmission, check the fit with Banks before installation.

How much torque does the Banks Billet Torque Converter handle?

Banks rates it at 1800 lb-ft of torque capacity, compared with 600 lb-ft for the stock converter. Banks credits the three-friction-element clutch and billet steel cover for holding solid contact under load.

What is the part number and UPC for the Banks 72515?

The part number is 72515 and the UPC is 801279725157. The assembly is balanced and blueprinted and sold under the Banks Power brand. Check the converter against your transmission before installing.

Should the transmission cooler be inspected when a new converter is fitted?

Yes. A converter that carries more load can push more heat into the fluid, so check the cooler, lines and fittings for restriction or leaks before refilling. Clean or replace the cooler if debris is found.
