Overview

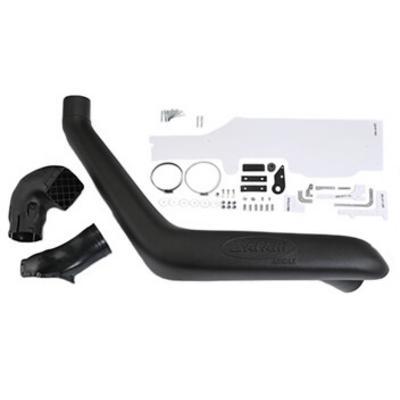

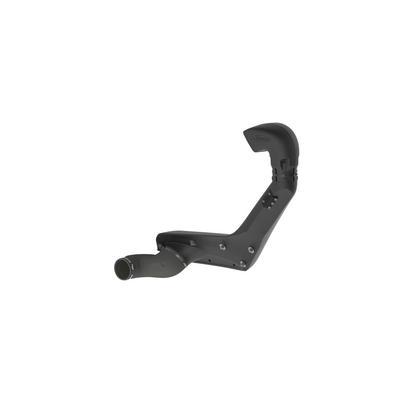

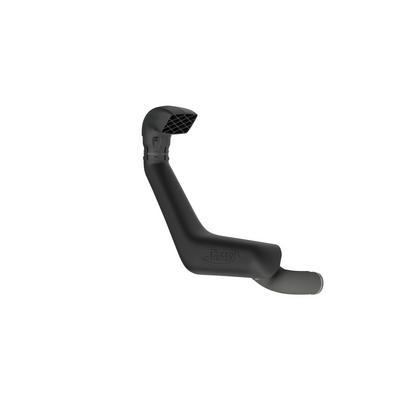

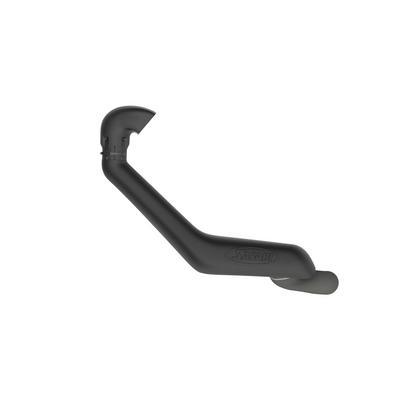

The ARB Safari Snorkel Intake Kit (part number ARBSS445HF) is an air intake snorkel from ARB 4×4 Accessories, listed with direct fit for the 2003–2009 Toyota 4Runner in Limited, SR5 and Sport trims. Its Air Ram is designed to remove water from the incoming air stream while delivering airflow to the vehicle’s engine.
The Air Ram was developed with CAD modeling and testing on actual vehicles. The kit was designed as one system from the air box back to the Air Ram, so the parts are meant to work together on the vehicle.
The snorkel body is UV stable polyethylene, giving a strong and robust fitting. Stainless steel and plated hardware are used on internal and external fittings for corrosion resistance. The connection ducting is custom designed and tooled from EPDM moulded rubber, rated to a continual 130C operating temperature.
Key features
- Air Ram design that removes water from the incoming air stream
- CAD and lab tested design
- UV stable polyethylene snorkel body
- Stainless steel and plated hardware for corrosion resistance
- Custom designed and tooled EPDM moulded rubber ducting
- Ducting rated to a continual 130C operating temperature
- Developed from the air box back to the Air Ram
Water and dust at the intake
A snorkel raises the engine air intake above the typical water line, which matters when crossing streams or driving through deep mud. The head shape of a water-removal design helps separate water from the air before it reaches the filter. Dust is still a concern on dry tracks, so the air filter and its housing remain a regular maintenance item.
Because the snorkel is part of the intake path, its joints carry air and need to stay sealed. Look at the ducting after each trip for splits, loose clamps or rubber that has hardened. Confirm the snorkel sits clear of the hood and the body mounts, since movement can crack the body or loosen the fitting. After a deep water crossing, inspect the filter for moisture and replace it when it shows signs of water or dirt.
- Check the snorkel mounting for movement
- Inspect ducting clamps after rough trails
- Keep the air box filter serviced
Specifications
| Brand | ARB 4×4 Accessories |
|---|---|
| Part number | ARBSS445HF |
| Type | Air intake snorkel kit |
| Snorkel body | UV stable polyethylene |
| Hardware | Stainless steel and plated |
| Connection ducting | EPDM moulded rubber |
| Ducting operating temperature | Continual 130C |
| Fitment | Direct fit |
Vehicle fitment
It is a direct fit for the 2003–2009 Toyota 4Runner in the Limited, SR5 and Sport trims.
The list does not cover other 4Runner model years or other Toyota models. Confirm your vehicle’s year, model and trim before ordering.
What’s included
Confirm the hardware on hand matches your installation before fitting.
