Overview

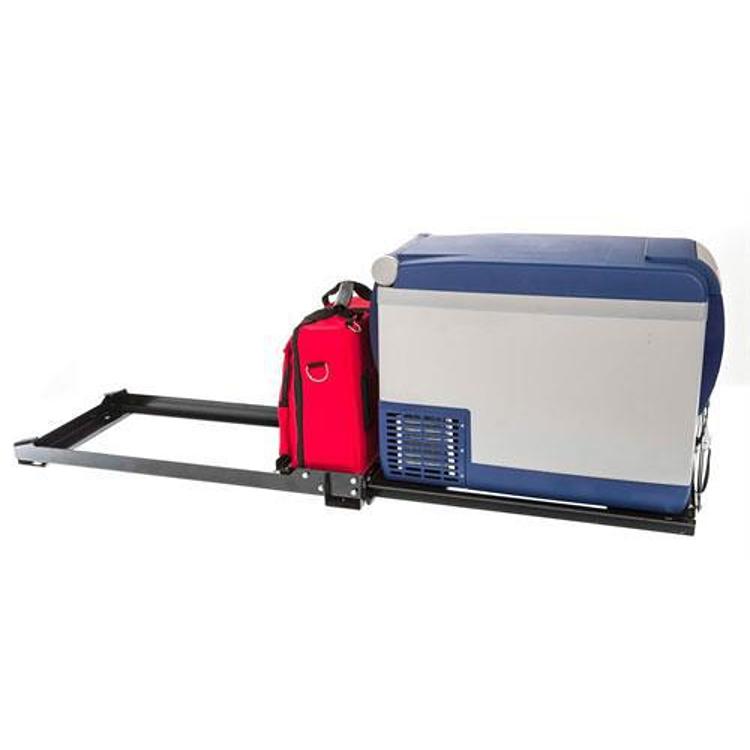

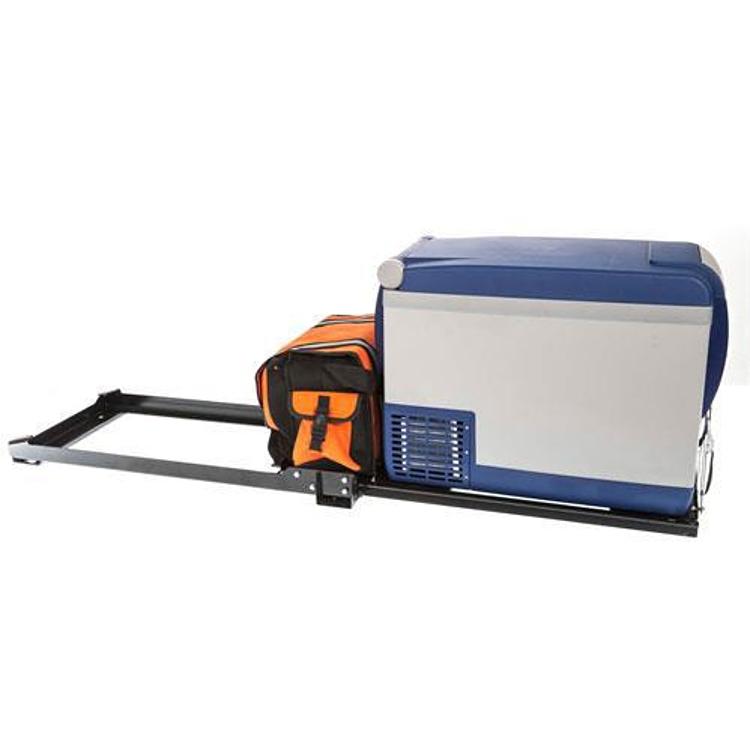

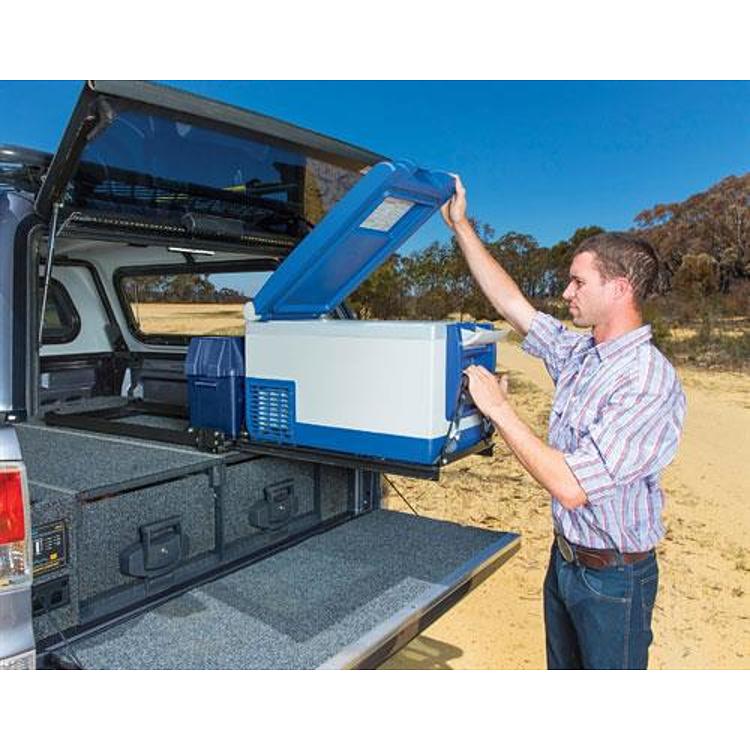

The ARB Full Extension 37/50 Qt. Fridge Slide, part number 10900029, is a black heavy-duty steel slide that extends a 37/50 Qt. ARB fridge freezer further out of the vehicle than the standard slide. The fridge comes out further, so you do not have to reach as far, which is especially useful with drop down tailgates.

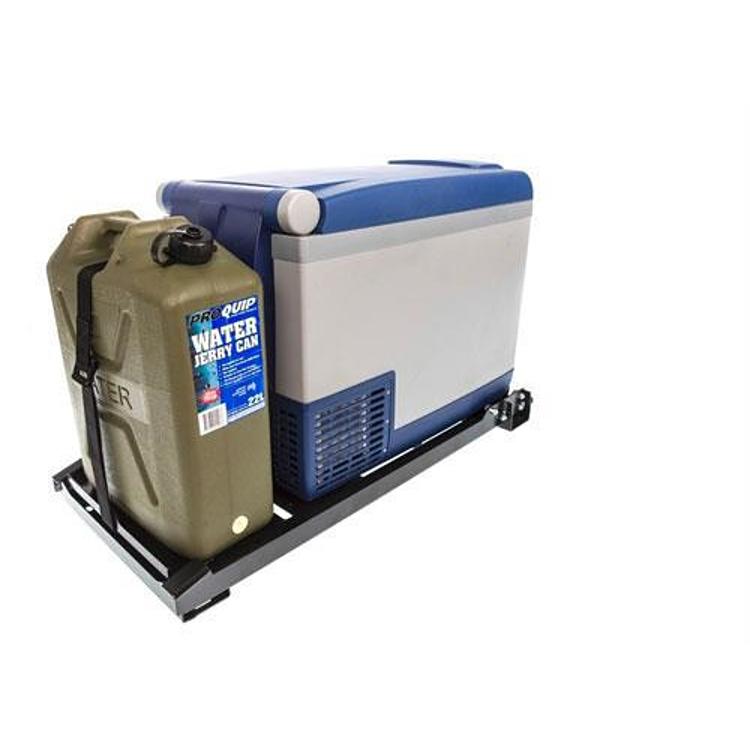

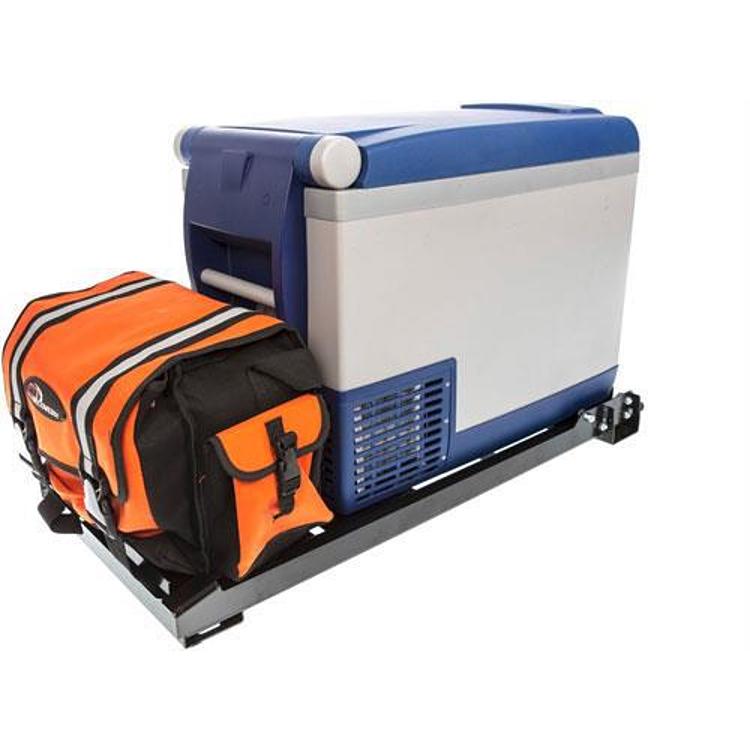

The slide base is longer than the standard ARB fridge slide. The extra space behind the fridge can hold an additional tray for a toolbox, recovery kit, first aid kit, water jerry can or sealed N70 battery.
Key features
- Longer slide base for more travel than the standard ARB fridge slide
- Heavy-duty steel, precision laser cut and formed for strength and rigidity
- EZ latch with a comfort plastic coated handle, factory fitted on the right hand side
- Latch can be repositioned to the left hand side
- Slide latches in either the fully open or fully closed position to prevent roll on uneven ground
- Drain hole matches the ARB fridge for draining
- Adjustable bearing guides and adjustable 4-way anti-vibration pads to prevent rattles
Before you install
A fridge slide carries a heavy appliance on every trip, so the rails, latch and mounting points take repeated stress. Before fitting, look over the base for bent sections, check that the bolts are tight and that the bearing guides run smoothly. A slide that binds or rattles often means the guides need adjusting or the vehicle floor has flexed.
Because this slide extends further than standard, pull it out fully with the fridge empty first and watch for contact with the tailgate, bumper or spare wheel. Load the fridge after the slide is latched, and keep heavy items low and centred to reduce sway on rough tracks.
- Check the latch before every trip
- Clean the rails and guides of grit after dusty runs
- Re-tighten mounting bolts after the first few trail runs
Specifications
| Brand | ARB 4×4 Accessories |
|---|---|
| Part number | 10900029 |
| UPC | 9332018027924 |
| Capacity | 37/50 Qt. |
| Color | Black |
| Material | Heavy-duty steel |
| Latch | EZ latch, factory fitted right hand side, repositionable |
| Anti-vibration pads | 4-way, adjustable |
| Warranty | 2-year |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. Check your tailgate and fridge size against the slide’s extended travel before installation.
Because the slide extends the fridge out of the vehicle, confirm the rear clearance for your tailgate and fridge before installation.
Installation notes
The latch is factory fitted on the right hand side and can be moved to the left. Adjust the bearing guides and the 4-way anti-vibration pads so the slide does not rattle. Latch the slide open or closed before loading heavy items so it cannot roll on uneven ground.
What’s included
The extra space behind the fridge can hold a storage tray for a toolbox, recovery kit, or water jerry can. Check the package contents against your installation before starting.
