Overview

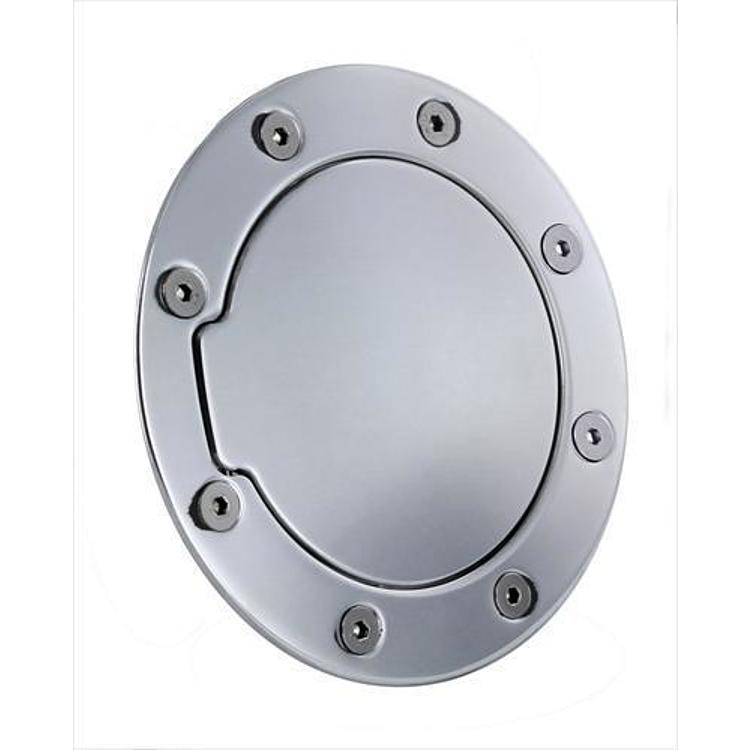

The AMI 6090P is a polished aluminum billet fuel door, part number 6090P, and it is a non-locking Direct Fit replacement. It is machined from 6061-T6 aircraft aluminum with a polished finish.
The door measures 5 1/8 in. outside diameter and the ring measures 7 3/8 in. outside diameter, so those two figures are the first thing to check against the filler opening.
Key features
- Polished aluminum finish
- Machined from 6061-T6 aircraft aluminum
- Push-to-open door
- No drilling required
- Non-locking design
Measuring a filler opening
Replacement fuel doors are judged by the fit of the ring against the filler neck, so measure before you order or remove the old door. Note the opening’s diameter at the widest point and compare it with the ring size given for this part. A door that is too tight can bind the hinge, while one that is too loose will rattle and let dust in around the edge.
Check the condition of the gasket or seal that sits behind the door, because a damaged seal can leave a gap even when the diameters are right. Clean the opening and the back of the new door before fitting, and confirm the door closes flush with no force. Recheck the fit after a few days of driving, since vibration can shift a door that was seated slightly off-center.
Specifications
| Brand | AMI |
|---|---|
| Part number | 6090P |
| UPC | 660936003034 |
| Material | 6061-T6 aircraft aluminum |
| Finish | Polished aluminum |
| Ring outside diameter | 7 3/8 in. |
| Door outside diameter | 5 1/8 in. |
| Locking | No |
| Fitment type | Direct Fit |
Vehicle fitment
The 6090P is a Direct Fit replacement. Confirm fit for your vehicle’s year, model and trim before ordering.
Measure the existing filler opening before fitting, since the diameters are the only dimensions given. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
No drilling is required. Measure the existing opening against the 7 3/8 in. ring and 5 1/8 in. door diameters before fitting. The non-locking door has no lock to set up.
What’s included
The polished door is the item supplied. Check the package contents against your installation before starting.
