Overview
The AIRAID 400-633 is an anodized billet aluminum throttle body spacer for the 2009–2010 Ford F-150 in the FX2, STX, XL and XLT trims. Installed between the throttle body and intake, it is built to change airflow into the engine for stronger mid-range power and torque.
AIRAID markets the PowerAid line for low-end torque, throttle response and fuel economy, and this model uses a Helix bore. It carries 50 State CARB approval and is made in the U.S.A.
Key features
- Billet aluminum body with anodized finish
- Helix bore designed for mid-range power
- Aims to improve low-end torque and throttle response
- 50 State CARB approved
- Bolt-on installation
- Made in the U.S.A.
Spacer care and checks
A spacer adds a short gap between the throttle body and the intake, so the connection at each end carries the full airflow. On an F-150 used for work or towing, the joints see vibration and heat cycling, and a small leak can change idle and throttle feel. Routine checks help the spacer keep doing its job.
Anodized aluminum resists corrosion well, but the finish can still scratch from tools during service. Clean the outside with a mild cleaner rather than abrasive pads. Make sure the air intake tube is secure and the throttle body connector is fully seated. A helix bore can collect light deposits, so periodic cleaning keeps airflow even.
- Recheck clamps after the first drives
- Replace worn throttle body gaskets
- Keep the air filter clean
- Look for an oil film at the joints
Specifications
| Brand | AIRAID |
|---|---|
| Part number | 400-633 |
| UPC | 642046406332 |
| Product type | Throttle body spacer (PowerAid series) |
| Base material | Aluminum, billet |
| Finish | Anodized |
| Bore | Helix |
| Emissions approval | 50 State CARB approved |
| Country of manufacture | U.S.A. |
Vehicle fitment
It fits the 2009–2010 Ford F-150 in the FX2, STX, XL and XLT trims. Other F-150 years and trims, and Super Duty trucks, are not covered.
F-150 model years outside 2009–2010 and Super Duty trucks are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included

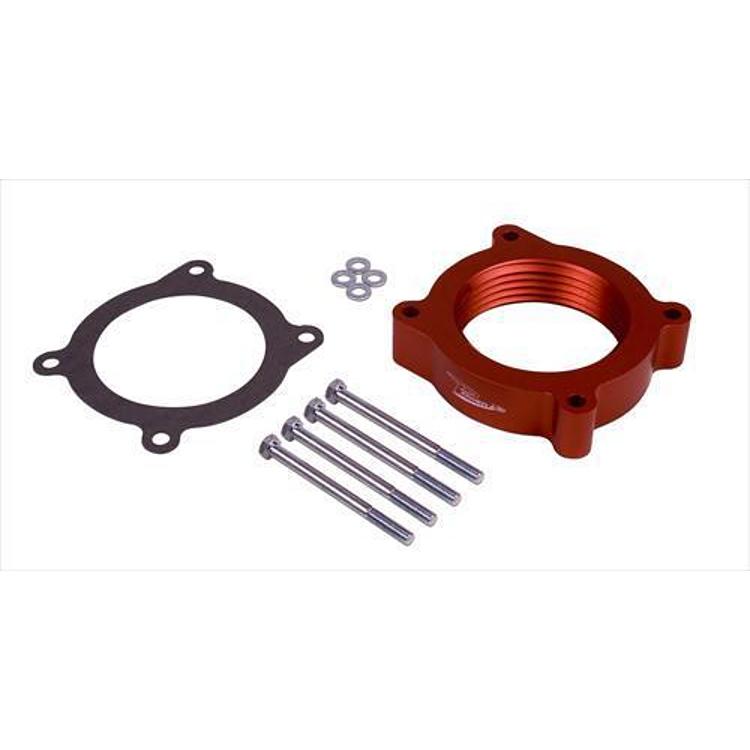

Check the box for gaskets and hardware before installing the spacer.
