Overview
The Smittybilt Smart Soft folding tonneau cover, part number S/B2620032, is a manual folding cover for a bed measuring 6-foot-4-inch. It fits the 2019 Ram 1500 pickup in the Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel and Tradesman versions. The cover is vinyl over a 6061 aircraft aluminum frame and clamps to the bed rails.

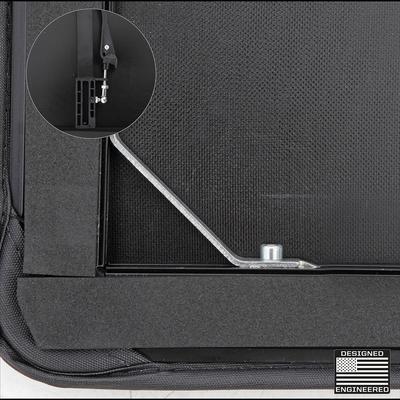

The Cam’d speed lock is designed for quick installation and removal, and the cover uses an all weather sealing system. The frame has reinforced corners covered in leather grain vinyl.
Key features
- Manual folding operation
- Vinyl over a 6061 aircraft aluminum frame
- Bed rail clamp mounting
- Cam’d speed lock system

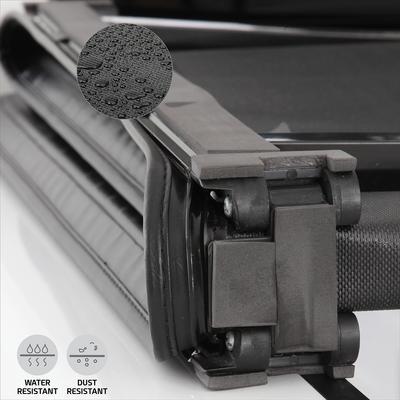

- All weather sealing system
Keeping the seals working
The sealing edges and the rail clamps do most of the work in keeping water and dust out of a tonneau setup. Over time, UV exposure and repeated folding can stiffen vinyl and flatten gaskets, so inspect the sealing lines on a regular schedule. A small gap at a corner can let water collect on the bed floor, even when the cover itself looks intact.
Speed locks and clamp hardware also need attention. Tighten fasteners after the first few drives, since vibration can loosen them, and keep the locking mechanism free of grit. If a clamp slips or a seal separates, stop using the cover until it is corrected, because loose panels can flap and damage the vinyl.
- Wipe sealing edges and remove grit before closing
- Recheck clamp tightness after the first few drives
- Replace worn seals instead of pressing panels shut
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | S/B2620032 |
| Type | Folding soft tonneau cover |
| Bed length | 6-foot-4-inch |
| Material | Vinyl with 6061 aircraft aluminum frame |
| Mounting system | Bed rail clamps |
| Locking system | Cam’d speed lock |
| Sealing | All weather sealing system |
| Fitment | Direct fit |
Vehicle fitment
It fits the 2019 Ram 1500 pickup only, in the Big Horn, Laramie, Laramie Longhorn, Limited, Lone Star, Rebel and Tradesman versions.
It is made for the 2019 Ram 1500 pickup. Confirm fit for your vehicle’s year, model and trim before ordering, especially for the 2019-2022 Ram 1500 Classic.
Installation notes
Check the rail clamp positions before tightening, and close the Cam’d speed lock only after the cover is square on the bed. Check the package contents against your installation before starting.
