Overview

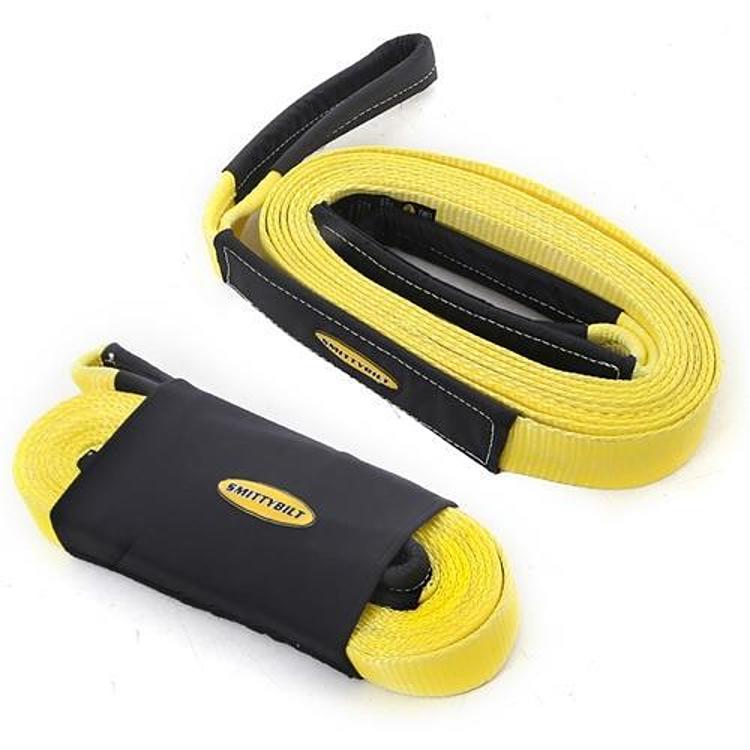

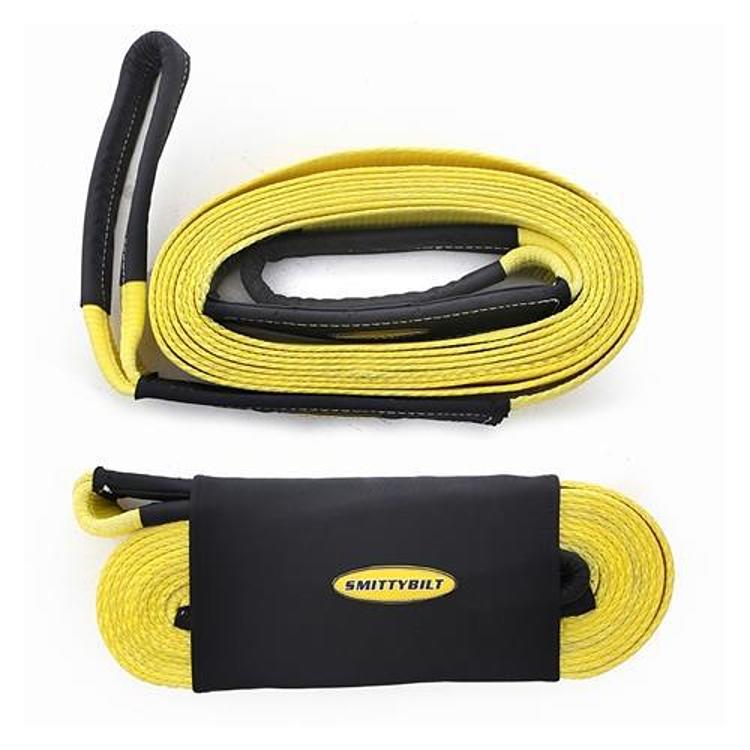

The Smittybilt 4 inch by 20 foot recovery strap, part number CC420, is rated for 40,000 lbs. It is yellow and uses double stitched webbing with a double hoop design, with a width range of 3-1/8 to 4 inches.
This 4 inch by 20 foot model also works as a tree trunk saver, so it can be wrapped around a tree and used as a recovery anchor. Its 20 foot length makes it the shorter of the 4 inch straps.
Key features
- Rated 40,000 lbs
- 4 inch width
- 20 foot length
- Yellow color

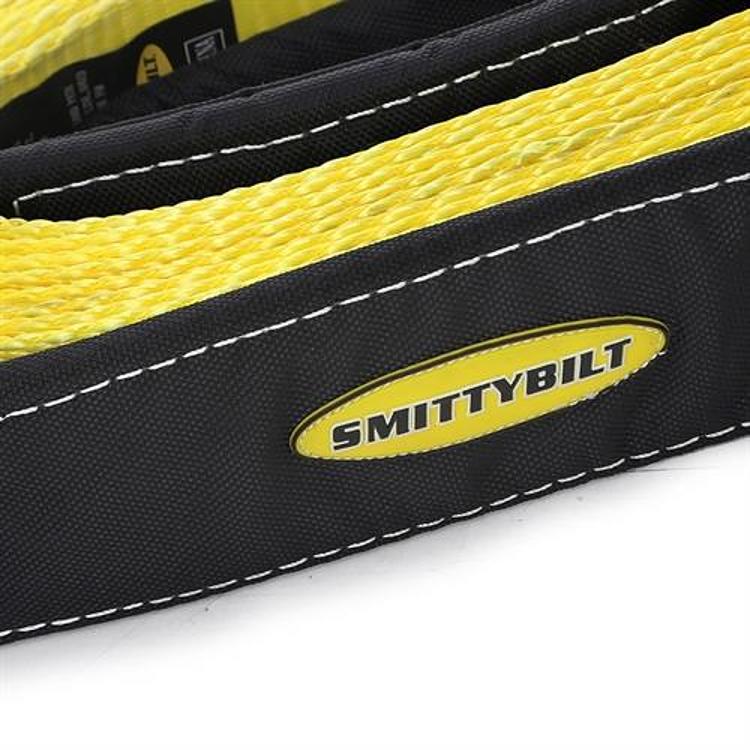

- Double stitched webbing
- Double hoop design
- Tree trunk saver use
Tree anchor use
Wrapping a strap around a tree spreads the pulling force over the trunk rather than onto a single point, which makes it a useful backup when no rated recovery point is available. The tree should be healthy, sturdy and large enough to carry the load, and the strap should sit as low on the trunk as possible to keep the pull steady.
A wide strap also helps protect bark from being cut by the webbing. Before each use, look at the tree for dead limbs or loose bark, and keep the vehicle’s path clear of people. Treat the strap as an anchor only, and keep the rated load in mind for both the strap and the vehicle connection.
- Wrap the strap around the trunk rather than the branches
- Avoid trees with rot, cracks or loose bark
- Keep clear of the strap line during the pull
Specifications
| Brand | Smittybilt |
|---|---|
| Part number | CC420 |
| UPC | 631410092608 |
| Product type | Recovery strap |
| Width | 4 inches, compatible range 3-1/8 to 4 inches |
| Length | 20 feet |
| Load rating | 40,000 lbs working load limit |
| Color | Yellow |
Vehicle fitment
This strap is not tied to a specific vehicle. Choose it by its 40,000 lb rating and width, and confirm the width suits your recovery hardware.
Installation notes
Keep the load within the 40,000 lb working load limit when using the strap for recovery or as a tree trunk saver.
