Overview

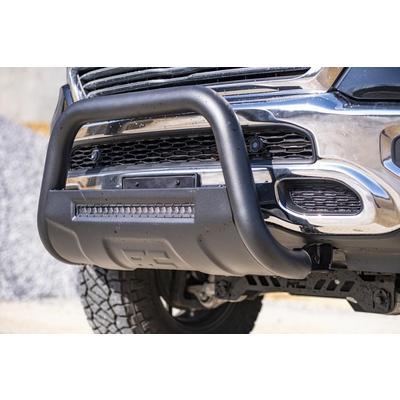

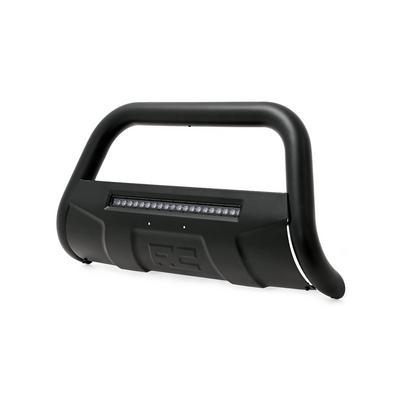

The Rough Country B-D4091 (R/CB-D4091) is a black Ram bull bar with an integrated 20-inch LED light bar for the front of the Ram 1500, covering the 2009–2010 Dodge Ram 1500, the 2011–2020 Ram 1500 and the 2019–2024 Ram 1500 Classic.
The 3-inch thick tubular steel bar provides front-end protection with a built-in 20-inch Black-Series single-row LED light bar for trail lighting. Installation is 100% bolt-on, and the bar includes a removable license plate relocation bracket.
The light bar uses Cree LEDs rated at 7200 lumens and 90 watts. Rough Country says its all-weather LED lights have a die-cast aluminum housing and a waterproof, flat-wound, braided wiring harness with toggle switch and in-line fuse, and the bar has a corrosion-resistant black powder coat.
Key features
- 3-inch thick tubular steel bull bar
- Integrated 20-inch Black-Series single-row LED light bar
- Cree LEDs rated at 7200 lumens and 90 watts
- Removable license plate relocation bracket
- 100% bolt-on installation
- Corrosion-resistant black powder coat
- Die-cast aluminum light housing
- Waterproof braided wiring harness with toggle switch and in-line fuse
Trail lighting on a Ram truck
Integrated light bars change how a truck’s front end looks and works, so think about the lamp angle as well as the bar itself. A light mounted at bumper height throws a wide, low pattern that suits trails and rough roads, while higher mounting reaches farther down open ground. Keep the lens clean, since road grime cuts output quickly.
Front bars add weight and can affect parking sensors, cameras and headlight aim. After installation, check that the headlights still illuminate the road correctly and that sensors are not blocked by the mounting brackets. Re-check every bolt after the first few rough trips, since the bar takes a lot of road shock.
- Clean the lens regularly for full output
- Check headlight aim after installation
- Confirm sensor and camera clearance
- Re-check bolts after rough sections
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/CB-D4091 |
| Product type | Bull bar with integrated LED light bar |
| Position | Front |
| Fit type | Direct fit |
| Tube thickness | 3 inches |
| Material | Tubular steel |
| Finish | Black powder coat |
| Light bar | 20-inch Black-Series single-row LED |
| LED type | Cree LEDs |
| Light output | 7200 lumens |
| Light power | 90 watts |
| Installation | 100% bolt-on |
Vehicle fitment
It fits the 2009–2010 Dodge Ram 1500, the 2011–2020 Ram 1500 and the 2019–2024 Ram 1500 Classic.
Fit covers the Ram 1500 only, and the Ram 2500 and 3500 are not covered. The 2019–2024 Ram 1500 Classic is separate from the 2011–2020 Ram 1500. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Installation is 100% bolt-on. The LED light bar is wired with a toggle switch and in-line fuse through the harness, and its use on public roads is subject to local lighting rules.
What’s included
The bar includes the bull bar with integrated 20-inch LED light bar, a removable license plate relocation bracket, and a wiring harness with toggle switch and in-line fuse for the LED lights.
