Pavement Ends Sprint Top (Black Diamond) – 56843-35

Pavement Ends

Shop Pavement Ends Soft Tops on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Pavement Ends Sprint Top 56843-35 in Black Diamond, a frameless fastback top with a flip-back Sunrider panel.
  • Made for 4-door body styles; confirm fit for your vehicle’s year, model and trim
  • Reuses your factory door surrounds, windshield header and tailgate bar.
  • Removable tinted vinyl windows with 31% tint.
  • Limited three-year warranty.

Description

Overview

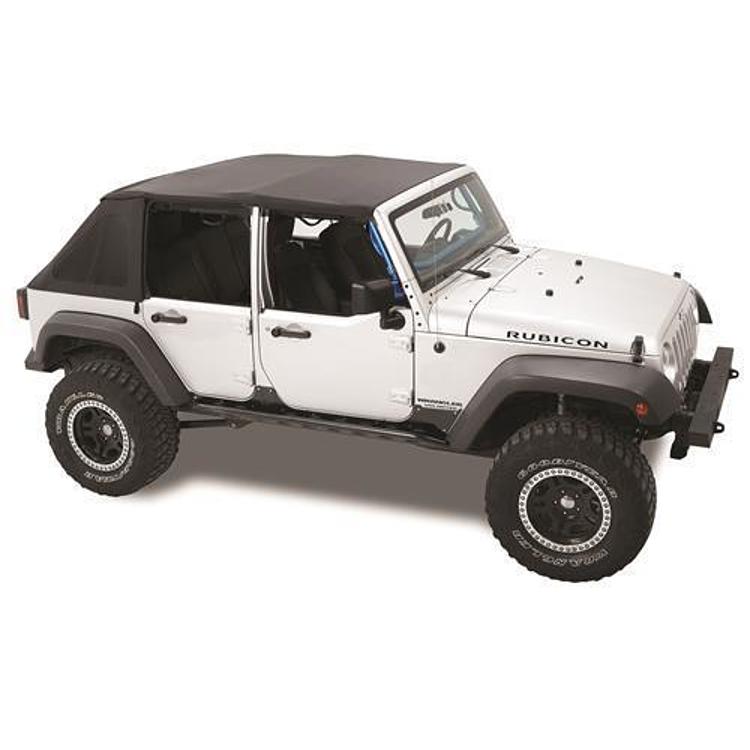

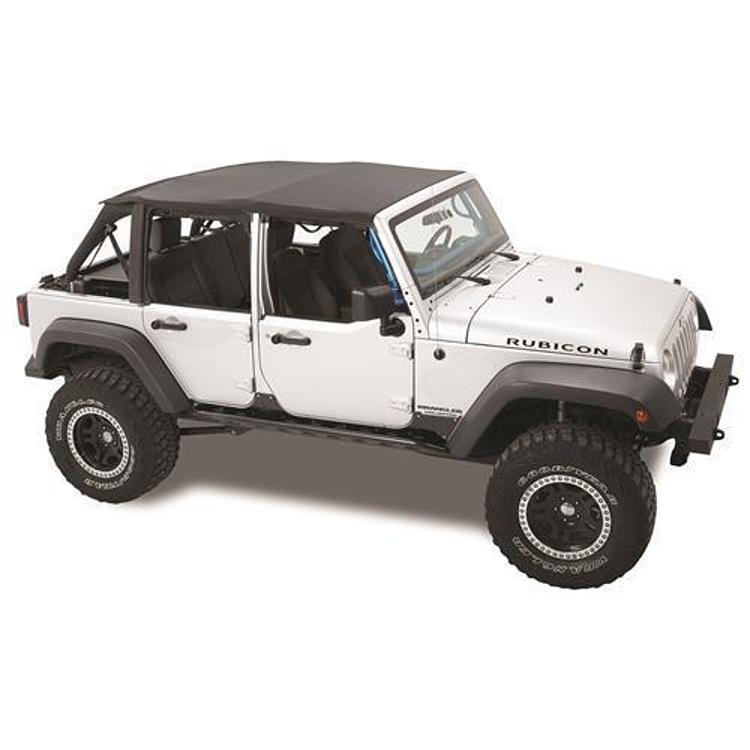

The Pavement Ends Sprint Top in Black Diamond, part number 56843-35, is a frameless fastback soft top with a flip-back Sunrider panel made for 4-door body styles. It is built to work with the door surrounds, windshield header and tailgate bar from your original factory top.

The sailcloth top is factory-quality fabric that installs without top bows. It is double stitched, heat sealed, marine grade 23 ounce sailcloth that is UV resistant to limit color fade and resists stains and mildew. The removable D.O.T. approved 25-mil vinyl windows have 31% tint, which helps keep the interior cooler in hot weather. Pavement Ends backs the top with a limited three-year warranty.

Key features

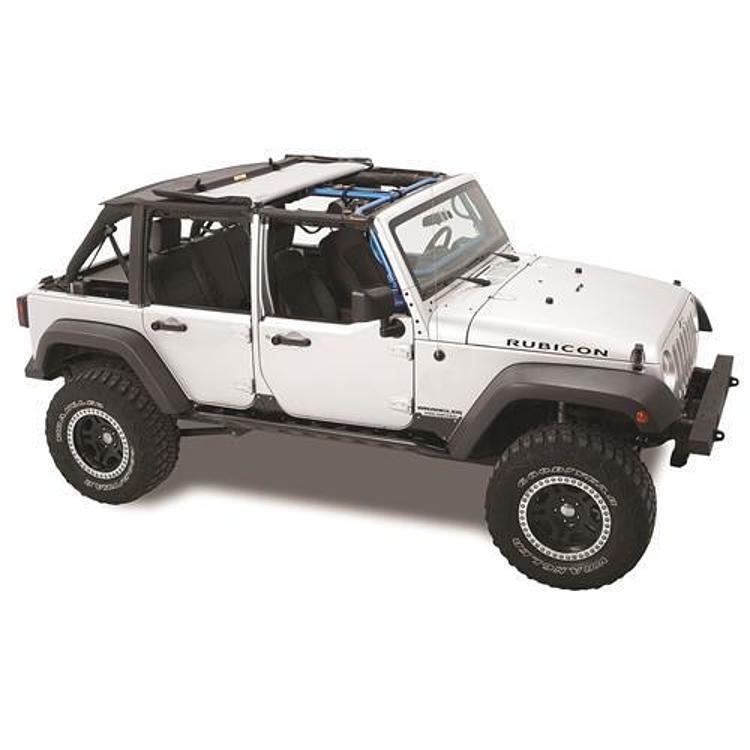

  • The header flips back easily for a top-off feel.
  • Frameless design with fastback styling.
  • Works with full steel doors or upper factory doors.
  • Fabric installs without top bows.
  • Tinted removable windows with 31% tint.
  • Double stitched, heat sealed marine grade 23 ounce sailcloth.
  • UV resistant fabric that resists stains and mildew.

Checking the reused frame parts

A frameless top is only as good as the parts it attaches to. Before ordering, measure your existing door surrounds, windshield header and tailgate bar, and compare them against the parts you have. Worn or bent frame pieces can cause wrinkles, gaps and wind noise, so replacing them is often more practical than adapting a top to a damaged frame.

Fastback soft tops are sensitive to tension at the seams and at the sail area near the header. Fold the flip-back panel with care, keep the windows flat, and clean the sailcloth with mild soap and water. After installation, recheck every fastening point after the first trips, and inspect the vinyl windows for cracks or clouding. Keep a record of which parts came from your original top so future repairs are simpler.

Specifications

Brand Pavement Ends
Part number 56843-35
UPC 77848121402
Color Black Diamond
Body style 4-door models
Top type Frameless fastback with flip-back Sunrider panel
Compatible doors Full steel doors or upper factory doors
Fabric 23 ounce marine grade sailcloth
Windows Removable D.O.T. approved 25-mil vinyl, 31% tint
Doors included No, doors not included
Hardware included No, hardware not included
Warranty Limited three-year

Vehicle fitment

This part number is made for 4-door body styles. Confirm fit for your vehicle’s year, model and trim before ordering, and check the door surrounds and header on your vehicle.

Do not assume a match from the 4-door description alone. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

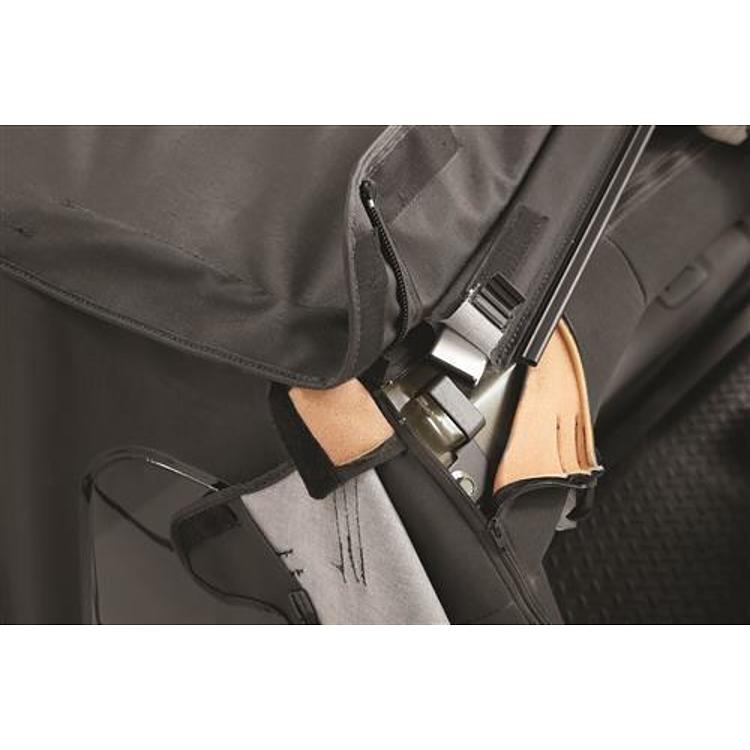

Confirm that the factory door surrounds, windshield header and tailgate bar are complete before you begin, because the top depends on them. If those pieces are missing, surround and tailgate bar part BST55012-01 and header part BST55014-01 are needed.

What’s included

Sprint Top soft top in Black Diamond with sailcloth fabric, flip-back Sunrider panel, removable tinted windows and installation instructions.

Not included: doors, hardware, and the factory door surrounds, windshield header and tailgate bar, which must come from your original top.

SKU: PAV56843-35 Category:

Specification

Shipping weight 43.00 lbs
Package dimensions 61.00 × 29.00 × 8.00 in
brands

Questions & Answers

Which vehicles does the Pavement Ends Sprint Top 56843-35 fit?

The top is made for 4-door body styles, with a frameless fastback design and flip-back Sunrider panel. Confirm fit for your vehicle's year, model and trim before ordering.

Does this top reuse my factory door surrounds and windshield header?

Yes. It is built to use the door surrounds, windshield header and tailgate bar from your original factory top. Without those parts, surround and tailgate bar part BST55012-01 and header part BST55014-01 are needed.

What are the window specifications?

The removable windows are D.O.T. approved 25-mil vinyl with 31% tint, which helps keep the interior cooler in hot weather. Measure your window openings against the frame before ordering.

How do I tell if a frame part needs replacing?

Look for cracks, bends, loose fasteners and gaps where the top meets the frame. Any damaged surround or header should be replaced before fitting, since a bent part makes the fabric wrinkle and leak.

How should the windows be cleaned?

Use a soft cloth with mild soap and water, and avoid harsh solvents that can cloud vinyl. Dry the windows fully and store the top flat to keep the tinted vinyl clear over time.
