Overview

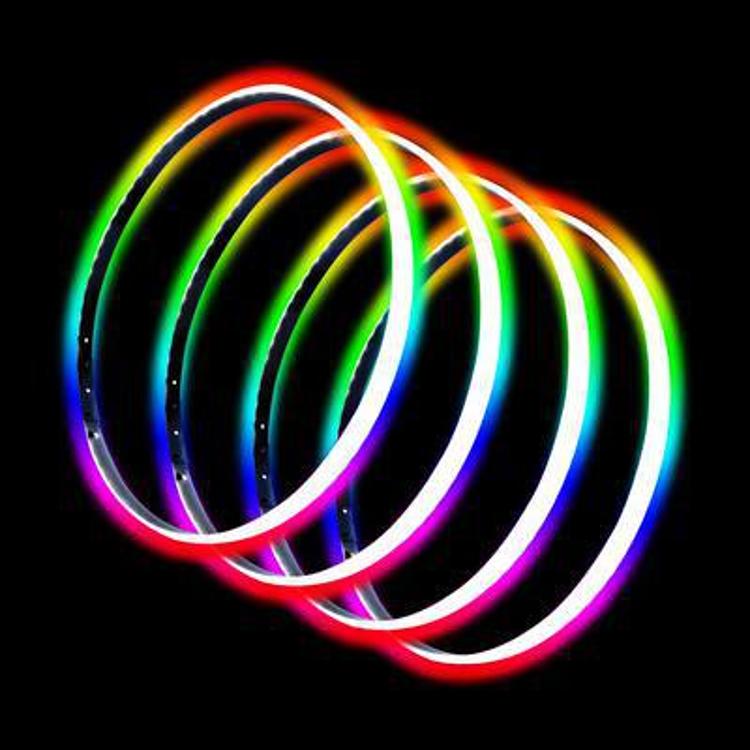

The Oracle Lighting LED Illuminated Wheel Rings in ColorSHIFT, part number 4215-330, are aluminum rings that fit around the brake rotor and light up the wheel barrel. Oracle Lighting lists them as a universal application for 15-inch wheels, so they are not built for one named vehicle.
Each ring is an aluminum strip formed into a circle, with high powered Oracle LEDs mounted along it. The ColorSHIFT version changes color, so the wheel wells take on a moving glow after dark. Trained technicians build each ring in-house and test it for durability and proper function. The rings can withstand high heat temperatures, and the design is TRON-inspired and aimed at car meets.
Key features
- ColorSHIFT LEDs that change color around the wheel wells
- Aluminum ring formed in a circle to wrap the brake rotor
- High powered Oracle LEDs illuminate the wheel barrel
- Mounts to the brake rotor dust shield
- Runs on 12V DC power
- Can withstand high heat temperatures, per Oracle Lighting
- Mounting hardware and rocker switch included
- 1-year warranty from Oracle Lighting
Wiring and power options
Accessory lighting that draws from the battery needs a clean power path. A fuse close to the battery protects the wire if a short occurs, and a relay can carry the switched load so the rocker switch handles only a small signal. Choose wire gauge for the run length and keep connections sealed, since road salt and wheel spray reach the wheel area quickly.
Switch placement matters as much as wiring. A rocker switch mounted where it can be reached without reaching under the car is easier to use, and it can be labeled so passengers know what it controls. Some drivers prefer a switched circuit tied to the ignition so the lights shut off with the engine, which reduces the chance of a drained battery after an evening at a meet.
Before a long drive, confirm that the wheel rings are switched off if local rules restrict lit wheels, and look at the wiring after bumpy trips. Chafing near the hub or suspension arms is the usual failure point, so re-clip any loose runs and replace damaged insulation promptly.
Specifications
| Brand | Oracle Lighting |
|---|---|
| Part number | 4215-330 |
| UPC | 421533020158 |
| Color | ColorSHIFT |
| Ring diameter | 15.5 in |
| Listed wheel size | 15 inches |
| Operating voltage | 12V DC |
| Mounting point | Brake rotor dust shield |
| Included | Mounting hardware, rocker switch |
| Warranty | 1 year |
Vehicle fitment
Oracle Lighting describes these rings as a universal application for a 15-inch wheel. No vehicle year, make, model or chassis is named, so the ring is not tied to one vehicle. Fit depends on the wheel size and on having room between the brake rotor and the dust shield.
The wheel size is 15 inches and the ring diameter is 15.5 in. Compare both measurements with your own wheels and brake setup before installing.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The ring mounts to the brake rotor dust shield using the included hardware. The rocker switch controls power from a 12V DC source, so run the wiring through a fuse as you would for any accessory lighting. Check local rules before driving with wheel lighting on public roads.
What’s included
Mounting hardware and a rocker switch come with the ring.
