Overview

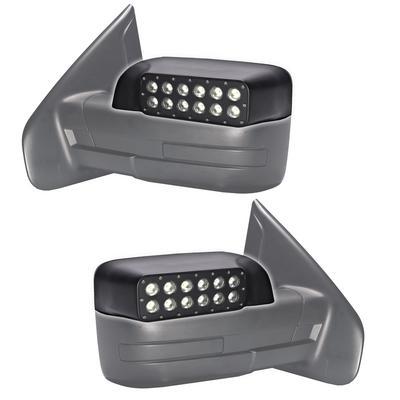

The Oracle Lighting ORC5752-001 is a set of LED side mirrors with built-in light bars for the Ford F-150 and SVT Raptor, covering 2009–2014 models. It was introduced at the 2013 SEMA Show as a factory-style side mirror that uses the stock mounts.
Peripheral light matters off road because headlights and most auxiliary lights only throw light in front of the vehicle. On a trail, the driver needs to see the area on the sides of the path to spot obstructions that could otherwise go unnoticed. Oracle Lighting built the light bars into the mirror housing so the side lighting comes with the mirror.
Key features
- Integrated LED light bar inside a factory-style side mirror housing
- 24 Cree XPE 1W LEDs for a total of 24W of LED power
- Approximately 2200lm of output
- 45 beam angle to widen peripheral visibility
- Multiple aluminum heat sinks use airflow through the mirror housing to help cool the LEDs
- Rugged polycarbonate housing that bolts on using the factory mounts
- Anodized rock guards protect the LED acrylic lenses
- DBM Reflex LED optics focus the light from the driver seat position
Lighting and wiring basics
Side-facing light helps a driver see along the edges of a trail, where obstacles like rocks and brush can sit out of view from the headlights. Mirror-mounted lights sit high and wide, so the beam covers the flanks rather than the road ahead. Position matters, and a clean lens gives the most usable light, so keep the optics free of mud and dust.
Wiring is where most problems show up. Route the harness away from moving parts and heat sources, and use a fused circuit for accessory lighting. Check the connections after rough trail use and after pressure washing, since water can work into a plug that is not well sealed. Mirror-mounted light bars also add load to the electrical system when they run alongside other accessories.
- Use a fused circuit for the light bars
- Keep lenses clean for full output
- Check harness routing after rough trail runs
Specifications
| Brand | Oracle Lighting |
|---|---|
| Part number | ORC5752-001 |
| Mount location | Door |
| Color | Black |
| Fitment type | Direct fit |
| LED configuration | 24 Cree XPE 1W LEDs |
| Total LED power | 24W |
| Light output | Approximately 2200lm |
| Beam angle | 45 |
| Optics | DBM Reflex LED |
| Housing material | Polycarbonate |
| Heat management | Multiple aluminum heat sinks |
| Lens protection | Anodized rock guards |
Vehicle fitment
It fits the 2009–2014 Ford F-150, including the SVT Raptor and the FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Lariat Limited, Limited, Platinum, STX, XL and XLT trims. Confirm fit for your truck’s model year and trim before ordering.
Ford F-150 model years outside 2009–2014 are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The housing bolts onto the door using the factory mounts, which makes for a straightforward install. Run lighting accessories like these through a fused circuit. Local rules on auxiliary lights apply on public roads.
What’s included
The package is the LED side mirror assembly with its integrated light bar. Check the package contents against your installation before starting, including quantity, wiring harness and mounting hardware.
