Overview

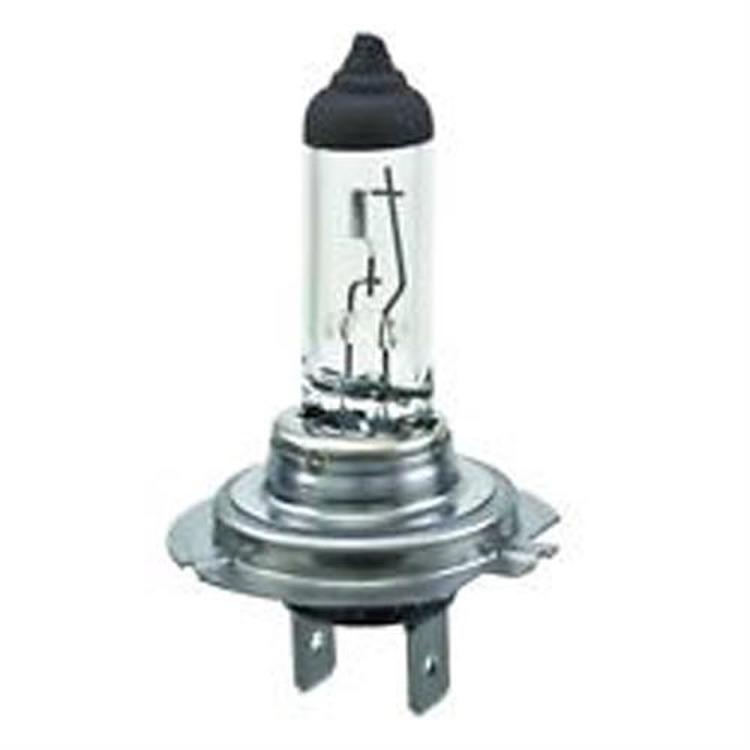

The Hella H7100W is an H7 halogen replacement bulb rated 12V 100W, with a PX26D base and T4.6 bulb size. It is a universal fit bulb, so it is sold by bulb type rather than for one named vehicle. Match the H7 designation, base and wattage to the lamp you plan to service.
Use it when an H7 halogen bulb in a 12V lamp needs replacing.
Heat and wiring at high wattage
A bulb with a higher wattage rating runs hotter, so the socket, connector and nearby plastic are under more stress than with a lower wattage bulb. Heat damage tends to show as discoloration around the holder, softened connector housings or flickering light. Check these areas each time the bulb is changed.
When the lamp draws high current, a relay can keep the load away from the switch and its wiring. This helps the switch last longer and keeps voltage steadier at the bulb. Choose a relay rated for the lamp’s load and follow the wiring diagram for the circuit, rather than improvising the connection.
- Check the holder for brown or softened plastic
- Keep the connector clean and fully latched
- Confirm the base seats square before closing the housing
- Replace damaged wiring rather than repeating the repair
Specifications
| Brand | Hella |
|---|---|
| Part number | H7100W |
| UPC | 760687150688 |
| Bulb type | H7 halogen |
| Voltage | 12V |
| Wattage | 100W |
| Base | PX26D |
| Bulb size | T4.6 |
Vehicle fitment
It is a universal fit bulb, so it is not tied to a particular year, make or model. Check the H7 base and 12V 100W rating against your lamp.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The H7 halogen bulb described above. No other contents are listed.
