Overview

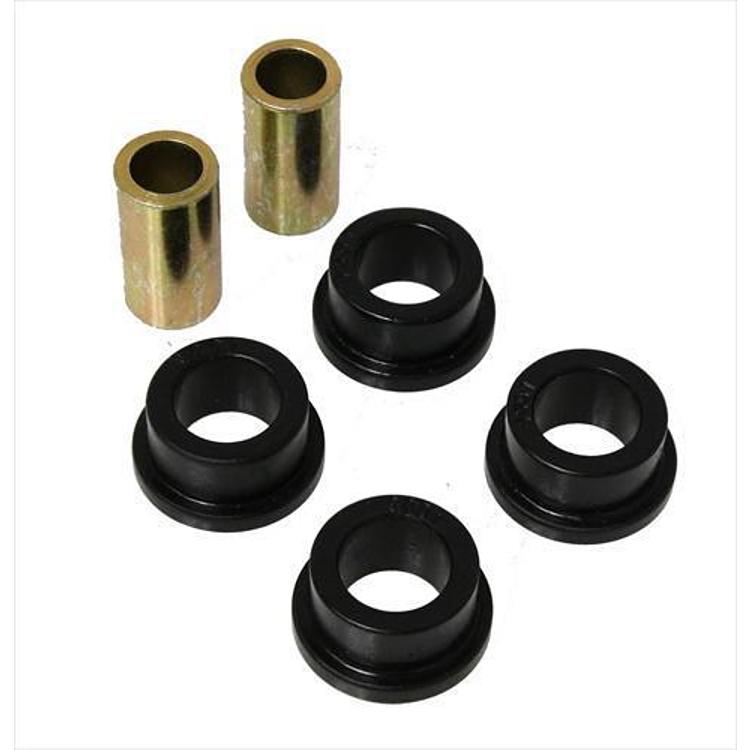

The Energy Suspension 9.9106G is a universal link bushing kit with 1 1/8 in. outside diameter bushings, 9/16 in. sleeves and four bushings packed with two sleeves. It is intended for sway bar end link use, and no make, model or year is named, so the kit carries Universal Fit.
The bushings are made from HYPER-FLEX performance polyurethane, a very firm material. Used with Energy Suspension end links, the firm bushings are intended to give a stiffer sway bar response.
Key features
- Four bushings with two sleeves in the kit
- 1 1/8 in. bushing outside diameter
- 9/16 in. sleeve inside diameter
- Barrel length 0.5 in., flange length 3/16 in., sleeve length 1.4
- Very firm HYPER-FLEX polyurethane
- Black
Caring for link bushings
Polyurethane link bushings hold their shape well, but they still need routine attention. Dirt, grit and road salt can build up in the joint, so cleaning the link during inspections helps keep the movement smooth. Use a silicone-based lubricant on the bushing surface if the installation instructions call for it.
Avoid petroleum-based grease on polyurethane, since it can soften the material over time. Check the sleeve for play, and replace any bushing that squeaks, splits or feels loose. Keep spare sleeves on hand if you plan to rebuild the link later.
Off-road trips place more load on the links, so inspect the bushings after rough trails. Early replacement keeps the bar aligned and reduces wear on the surrounding parts.
- Clean the joint during routine checks
- Use silicone-based lubricant if the instructions call for it
- Avoid petroleum-based grease
- Replace split or loose bushings
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 9.9106G |
| UPC | 703639416937 |
| Bushings per kit | 4 |
| Sleeves per kit | 2 |
| Bushing outside diameter | 1 1/8 in. |
| Sleeve inside diameter | 9/16 in. |
| Barrel length | 0.5 in. |
| Flange length | 3/16 in. |
| Sleeve length | 1.4 |
| Material | HYPER-FLEX performance polyurethane |
| Color | Black |
Vehicle fitment
Universal Fit is stated, and no make, model or year is given. Measure your end link or bar mount against the 1 1/8 in. outside diameter and 9/16 in. sleeve before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Each bushing pairs with a sleeve, so check that the 1.4 sleeve length and 0.5 in. barrel length suit your link before assembly.
What’s included
Four bushings and two sleeves.
Not included: sway bar and end links.
