Overview

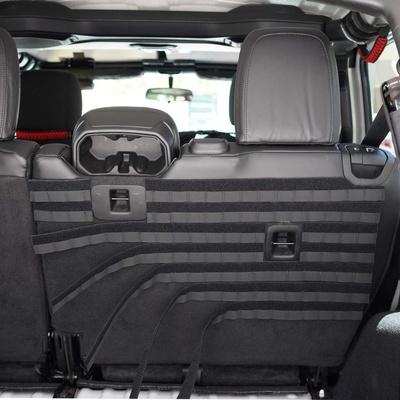

Bartact MOLLE strips with mil-spec PALS webbing in black, part number MS2-20BB, are hook and loop strips that add PALS/MOLLE attachment points inside a vehicle. The strips come on a 20′ roll. Each strip is 2″ tall, with 1″ PALS webbing spaced 1.5″ apart over a 2″ wide laminated hook and loop platform.
The system is modular. Strips are laid in rows, cut to length, and trimmed around seat latches and child seat safety latch locations, so you can cover a full hook and loop area or only part of one. The strips attach to hook-compatible carpet or loop areas, so the vehicle needs those areas. Press a hook item, such as a patch, against the area to test it.
Orientation affects hold. With the webbing at the bottom, weight pulls from the center, and the hook and loop holds better than with the webbing at the top. Strips held well with over 40 pounds of force applied to a pouch, and they hold several pounds depending on mounting.
Key features
- Mil-spec PALS webbing, 1″ wide, spaced 1.5″ apart
- 2″ wide laminated hook and loop platform
- Each strip 2″ tall, cut to length on site
- Rows can be stacked, with a 1″ gap between rows
- Angled cuts available around seat latches and child seat safety latch locations
- Black color
Planning a MOLLE layout
A hook and loop layout works best when each strip is sized to the area it covers. Measure the height and width of the carpet or loop area first, then plan rows so the webbing sits where it can be reached without blocking a seat track or a door pillar. Dry-fit the strips with the rows loosely laid out before cutting, so you can adjust the spacing and check how the webbing sits.
Load matters more than the hook and loop itself. Heavy gear should be placed low and centered, since weight pulls from the center of the strip. Light items on a pouch hold better when the webbing is at the bottom, and any pouch that swings sideways can work the strip loose over time. Inspect the rows after rough trips and press lifted edges back down.
- Test hook and loop areas before cutting the roll
- Keep webbing away from seat track rails
- Place heavier pouches low in the row
- Re-press edges that lift after rough driving
Specifications
| Brand | Bartact |
|---|---|
| Part number | MS2-20BB |
| Product type | MOLLE strips with PALS webbing and hook and loop backing |
| Color | Black |
| Roll length | 20′ |
| Strip height | 2″ |
| Webbing | 1″ mil-spec PALS, spaced 1.5″ apart |
| Platform | 2″ wide laminated hook and loop |
| Coverage note | A 5 foot roll covers 0.83 sq ft |
| Load note | Over 40 pounds of force applied to a pouch; strips still held well |
| Fitment type | Universal fit |
Vehicle fitment
No specific vehicle is named for these strips. They suit vehicles with hook-compatible carpet or loop areas, such as the Jeep Wrangler, Gladiator and Toyota Tacoma, plus several full-size trucks. The strips are not sized for a particular model.
Compatibility depends on each vehicle having a hook-compatible carpet or loop area. Press a hook item against the area to test it, and confirm loop locations for your vehicle’s year, model and trim before cutting.
Installation notes
Lay the strip over the area, cut it to length, and burn the cut end of the webbing with a lighter so it does not fray. Line each new row up to the bottom of the row above, or the top of the row below, to leave the 1″ gap between rows. Use the lighter with care and keep the flame away from upholstery.
What’s included
The roll is 20′ long of MOLLE strips.
Not included: MOLLE pouches, first aid kits or tools, which attach to the webbing separately.
